品牌:合肥力智
灵敏度:1.0-2.0mv/v
额定载荷:200KG-10T.......
常规信号输出:mv
起订:1件
供应:99件
发货:10天内

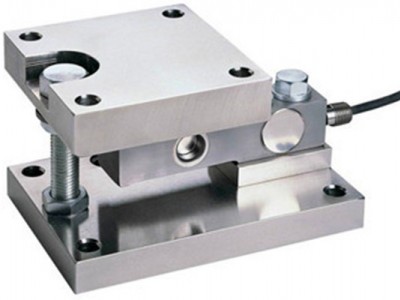

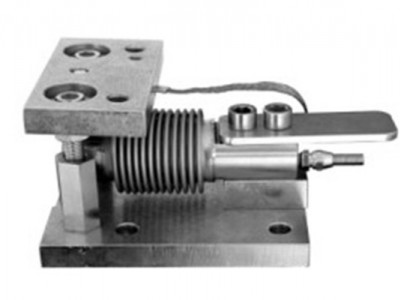

悬臂称重模块与各种机械装置容易连接，安装非常简便。具有自动调心功能和高度调节功能，称重力值称量准确。设有水平限位及顶起螺栓，结构稳定可靠
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.3% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Repeatability |
重复性 |
±0.2% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.02% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.02% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-20ºC to + 60ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
120% |
|
limit load |
极限载荷 |
150% |
|
Input Impedance |
输入阻抗 |
750 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
700 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V-15 DC/AC |
|
accuracy |
综合精度 |
±0.5% |
